METAL SHEATHED THERMOCOUPLES

Availability: na zamówienie

Dispatched within: 24 godziny dla ilości dostępnej na stanie magazynowym

Gross price: €41.68

incl. 23% TAX, excl. shipping costs

Regular price:

41.68

The lowest price during 30 days prior to the reduction:

Net price: €33.88

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

* Head:

* Diameter:

* Sensor length:

quantity szt.

product unavailable

add to wish list

* - Field mandatory

Product code: 5

ask about product

Description

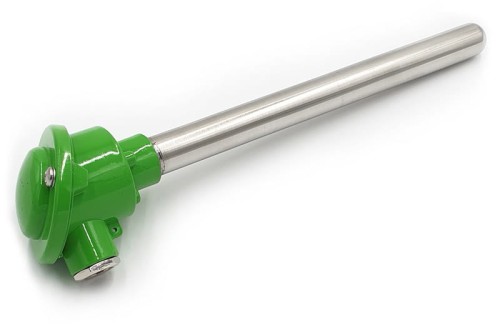

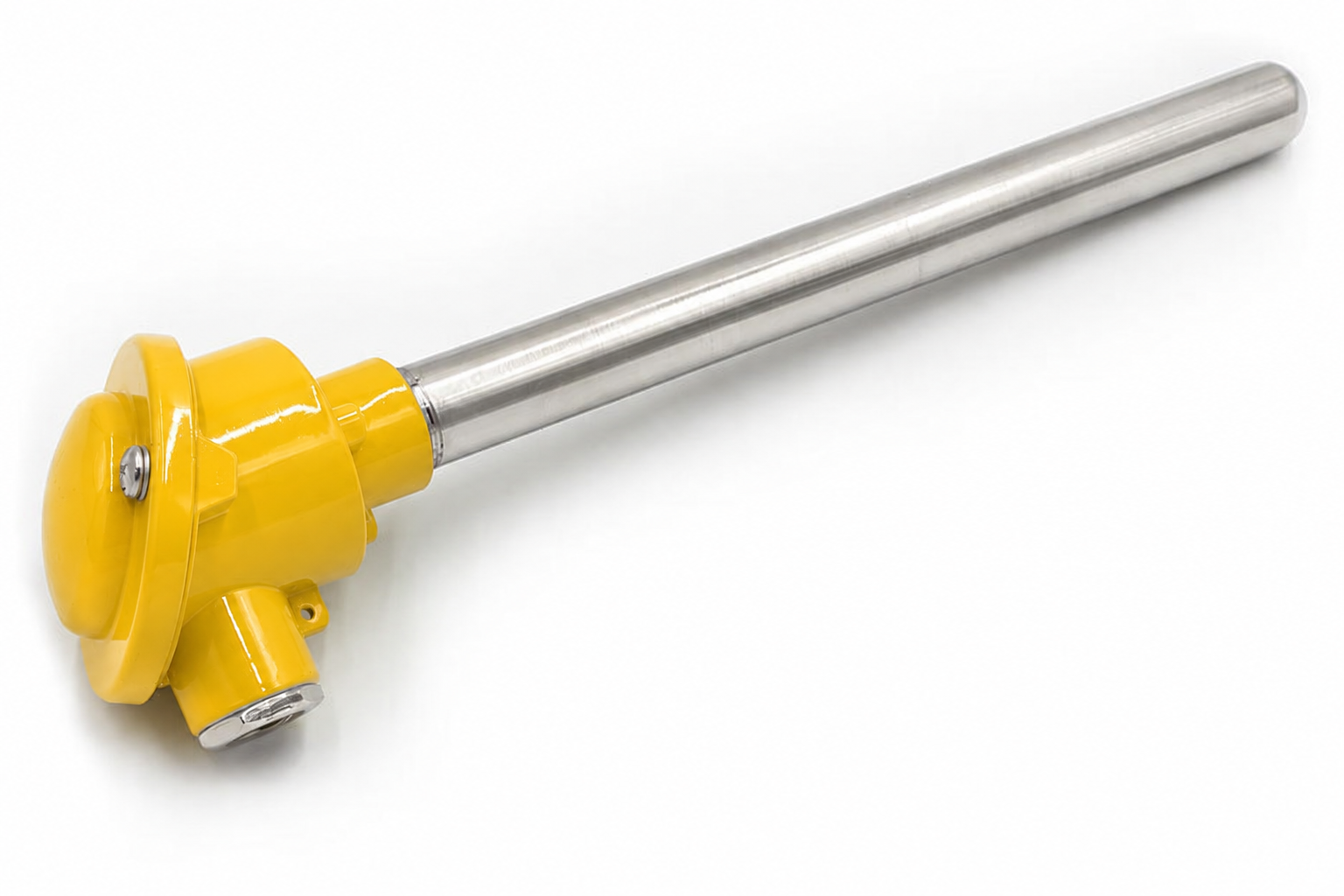

Thermocouple sensor (thermocouple) type K (NiCr-NiAl). The sensor is in the form of a straight pipe with various diameters available depending on the diameter of the measuring hole.

Maximum operating temperature of the sensor (cover): 1100 ° C
The pipe ends with a B type aluminum head. Inside the head there is a ceramic terminal block for connecting the compensation wires. Maximum working temperature of the head: 100 ° C
The following sensor sheath diameters are available: 10mm, 12mm, 15mm, 21.3mm and 22mm
Sensor cover: heat-resistant steel, grade: AISI310 (H25N20S2)
Sensor length from the front to the head base: from 200mm to 1800mm
Measuring insert: thermocouple wires in a ceramic insulator. Wire diameter (from 1.0mm to 3.0mm) depends on the diameter of the sheath.
