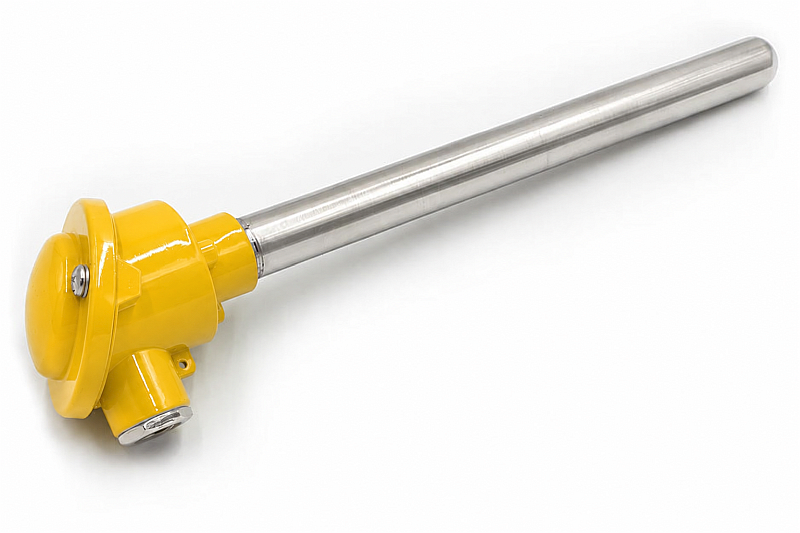

Metal-sheathed thermocouple with Type B head, 22 mm diameter, 1000 mm sensing element length.
Availability:
1 szt.
Dispatched within:
24 godziny dla ilości dostępnej na stanie magazynowym
Gross price:
€82.68
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
€67.22
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Product code:
SKLEP/S0257/05-1K-1-310–22-1000-B
Description
-
- Maximum operating temperature of the sensor (sheath): 1100°C- Tube fitted with a Type B aluminum head. Inside the head, there is a ceramic terminal block for connecting compensating cables.- Maximum operating temperature of the head: 100°C- Sensor sheath diameter: 22 mm- Sensor sheath: heat-resistant steel, grade AISI310 (H25N20S2)- Sensor length (from tip to head base): 1000 mm- Measuring insert: thermoelectric wires in a ceramic insulator. Wire diameter: 3.0 mm.
Technical data
| Sensot cover length | 22 mm |
| Head type | B |
| Senso lemgth | 1000 |
| Sheath material | 310 (1.4841) |
| Sensor type | K |
